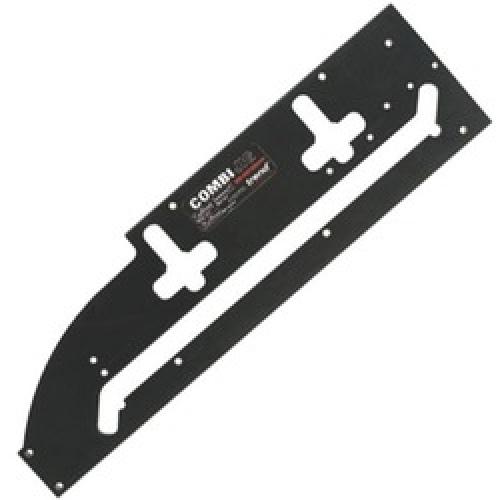

COMBI 66 JIG 500 TO 650MM WIDE WORKTOPS COMBI66 TREND

Product Code: 31856

Trend Worktop Jig 500-650mm Peninsular.
A worktop jig, designed to enable all 1/2 inch shank plunge routers to cut precise butt & scribe joints in postform workstops.

Features:

• Machined from hardwearing solid laminate.
• Will produce a joint in 15 minutes including setting-up time.
• Out of square joints can be accommodated.
• Facilities to cut various widths of board and thicknesses up to 42mm.
• Integral panel bolt connector recessing template with easy spanner access.
• Width setting stop for accurate positioning.
• Supplied with clear & comprehensive instructions for use.
• A single male and female template in 16mm solid laminate.
• Facility to join boards from 500mm to 650mm wide. Two bolt recess slot for connecting bolts.
• Three alloy location bushes & width setting stop.
• Cuts out of square joints (max. 3 degree).
• Jig requires:
• A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
• A template guide bush with 30mm outside diameter Ref. GB30
• A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
• Two 100mm (4 inch) throat clamps.
