COMBI 600 JIG 616MM WORKTOPS COMBI600 TREND

Product Code: 42009

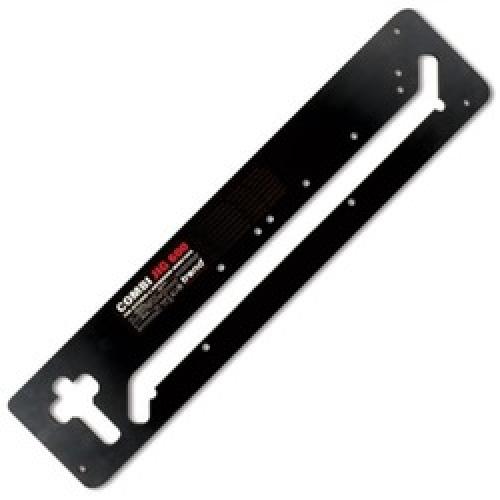

Trend Worktop Jig.
A worktop jig, designed to enable all 1/2" shank plunge routers to cut precise butt & scribe joints in postform workstops.

Features:

• Machined from hardwearing solid laminate.
• Will produce a joint in 15 minutes including setting-up time.
• Facilities to cut various widths of board and thicknesses up to 42mm.
• Integral panel bolt connector recessing template with easy spanner access.
• Width setting stop for accurate positioning.
• Supplied with clear & comprehensive instructions for use.
• A single male and female template in 10mm solid laminate.
• Offset widths 225,300,325,400,500,600 & 616mm. Integral single bolt recess slot for connecting bolts.
• Three alloy location bushes.
• Jig requires:
• A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
• A template guide bush with 30mm outside diameter ref. GB30.
• A TCT router cutter with 12.7mm (1/2") diameter and 50mm (2") cut length.
• Two 100mm (4") throat clamps.
